Permanent Anti Static 2 Inch Waffle Pack For Electronic Parts 0.2mm Flatness

Permanent Anti Static 2 Inch Waffle Pack For Electronic Parts 0.2mm Flatness
Permanent Anti Static 2 Inch Waffle Pack For Electronic Parts 0.2mm Flatness Permanent Anti Static 2 Inch Waffle Pack For Electronic Parts 0.2mm Flatness Permanent Anti Static 2 Inch Waffle Pack For Electronic Parts 0.2mm Flatness Permanent Anti Static 2 Inch Waffle Pack For Electronic Parts 0.2mm Flatness

تصویر بزرگ :  Permanent Anti Static 2 Inch Waffle Pack For Electronic Parts 0.2mm Flatness

جزئیات محصول:
محل منبع: ساخت چین
نام تجاری: Hiner-pack
گواهی: ISO 9001 ROHS SGS
شماره مدل: HN22030
پرداخت:
مقدار حداقل تعداد سفارش: 1000
قیمت: $0.35~$0.85(Prices are determined according to different incoterms and quantities)
جزئیات بسته بندی: این بستگی به تعداد سفارش و اندازه محصول دارد
زمان تحویل: 5 تا 8 روز کاری
شرایط پرداخت: T/T
قابلیت ارائه: ظرفیت بین 4000PCS~5000PCS/روز است

Permanent Anti Static 2 Inch Waffle Pack For Electronic Parts 0.2mm Flatness

شرح
مواد: کامپیوتر رنگ: مشکی
ماتریس QTY: 8*13=104PCS محل منبع: چین
مقاومت سطحی: 1.0x10E4~1.0x10E11Ω کلاس تمیز: تمیز کردن عمومی و اولتراسونیک
قالب تزریق: زمان سرب 20 تا 25 روز، طول عمر قالب: 30 تا 450،000 بار روش قالب گیری: قالب گیری تزریقی
برجسته:

0.2mm Flatness 2 Inch Waffle Pack,Anti Static 2 Inch Waffle Pack,Permanent Waffle Pack Chip Trays

,

Anti Static 2 Inch Waffle Pack

,

Permanent Waffle Pack Chip Trays

Permanent Anti-static 2 Inch Waffle Pack For Electronic Parts 0.2mm Flatness



The waffle pack is a common carrier of components, mainly used for transporting and handling tiny parts. If static electricity stays on electronic products, it will easily cause short circuit, which will cause damage to these sophisticated electronic products. so the anti-static tray is designed to avoid this situation.



By adding special polymer chains to the material, this gives it permanent electrostatic dissipative properties. At the same time, the product also has good mechanical strength and heat resistance. It will not change its anti-static performance due to the environment, time and temperature. This can greatly reduce the damage rate of electronic products in the production process.

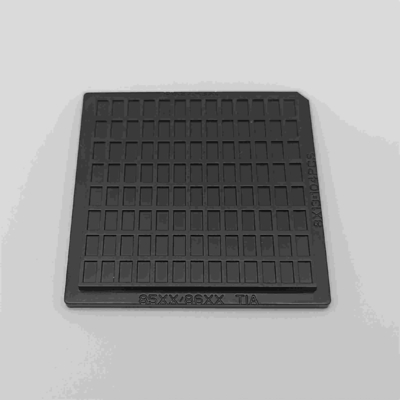

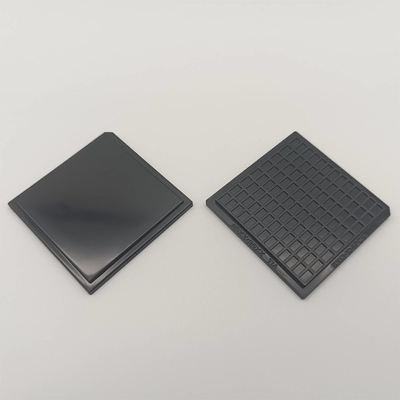

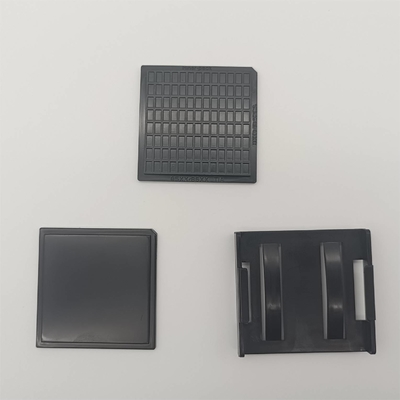

The Details of the HN22030 Waffle Pack Chip Tray



The HN22030 waffle pack is manufactured using PC material through injection molding. Its surface resistance value ranges from 1.0*10E4Ω to 1.0*10E11Ω, effectively dissipating electrostatic charges accumulated on product surfaces. The 8*13 matrix design is employed for optimal loading based on its compact pocket size of 2.3*4.3*0.5mm, while the chamfered edges at a 45-degree angle significantly reduce storage space requirements.



Additionally, it also supports ultrasonic cleaning with pure water. Our company is equipped with an independent purification room for this purpose, which can meet the increasing demand of customers for high cleanliness trays. With the gradual maturation of technology, waffle packs have become essential products for modern enterprises.



Outline Line Size 50.8*50.8*4mm Brand Hiner-pack
Model HN22030 Package Type Die
Cavity Size 2.3*4.3*0.5 Matrix QTY 8*13=104PCS
Material PC Flatness MAX 0.3mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS SGS



The Application of HN22030 Chip Tray



Electronics Industry                 Semiconductor

Optical Industry                       Military Industry

Outline Size Material Surface Resistance Service Flatness Color
2" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.2mm Customizable
3" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.25mm Customizable
4" ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM Max 0.3mm Customizable
Custom size ABS.PC.PPE...etc 1.0x10e4-1.0x10e11Ω OEM,ODM TBC Customizable
Provide professional design and packaging for your products



Advantages



1.Light weight, saving transportation and packaging costs. Light weight,.

2.Size specification, compatible in any 2 ", 3 "or 4" Waffle Pack Feeder Machine.

3.Good anti-static performance, effectively ensure that the product is not damaged by anti-static release.

4.High temperature resistance, suitable for high temperature automation equipment assembly.

5.Corrosion resistance, suitable for all kinds of production conditions of products.

Permanent Anti Static 2 Inch Waffle Pack For Electronic Parts 0.2mm Flatness 0



FAQ

Q1: When Can I get the quotation?

Ans: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us your mail so that we will regard your inquiry priority.



Q2: What information should we supply if we want a quotation?

Ans: Drawing of your IC or component, Quantity and size normally.



Q3: What is the delivery time?

Ans: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 15-20 days after receiving the payment.



Q4:Can I get Free Samples?

Ans:Yes, If samples we have in stock would be provided for testing, but shipment should at your side.



Q5: Can we use our own logo or do OEM?

Ans: Yes, OEM is acceptable. Please send email to us for more details.



Q6: What is your terms of delivery?

Ans: We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
