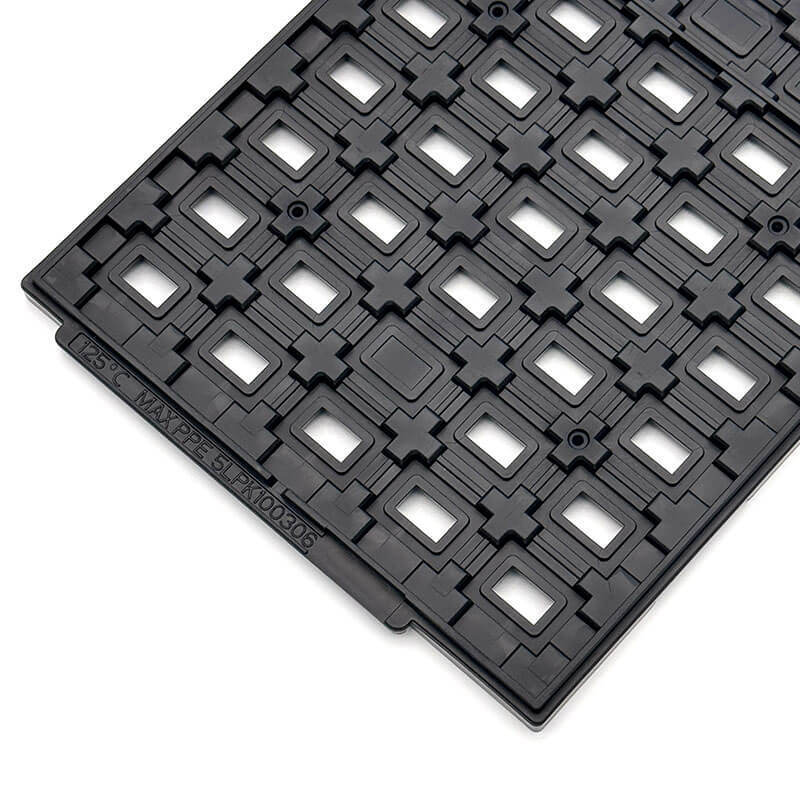

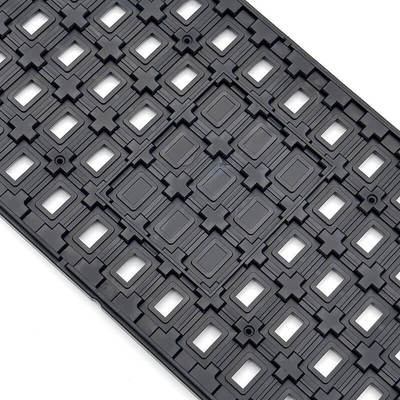

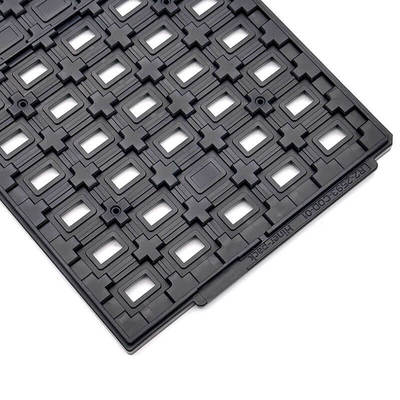

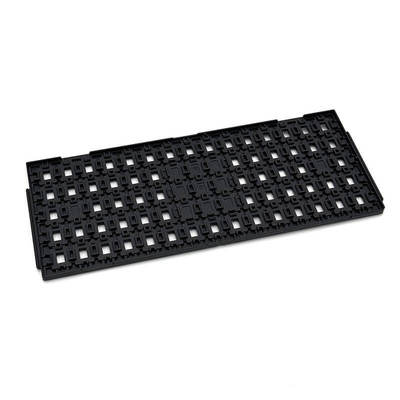

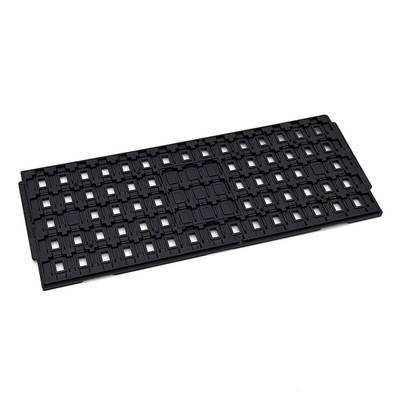

Anti-Static PPE Material JEDEC Tray Compatible With Pick-and-Place Equipment

Product Description:

This JEDEC matrix tray is designed to provide reliable, repeatable performance for electronic component handling across automated production and test workflows. Its durable, ESD-safe construction safeguards sensitive parts while maintaining precise pocket alignment. The tray integrates seamlessly with robotic pick-and-place systems, conveyors, and tray elevators, ensuring smooth transitions between processing stages. Its stable stacking capability, combined with uniform pockets and orientation guides, makes it ideal for high-throughput manufacturing where accuracy and protection are essential.

Features & Benefits:

JEDEC-Compliant Outline – Standardized form ensures compatibility with global equipment, feeders, and automated handling systems.

ESD-Safe Material – Conductive polymer construction prevents static charge accumulation, protecting delicate electronic components.

Consistent Pocket Geometry – Accurately molded pockets hold parts securely, minimizing shifting during handling and transport.

Automation-Friendly Design – Orientation notches, chamfered corners, and vacuum pickup zones support robotic and manual handling efficiency.

Stackable Stability – Interlocking edges maintain alignment of stacked trays, improving storage safety and reducing handling risk.

Durable Construction – Maintains shape and structural integrity under repeated use, including mechanical transfers and moderate process temperatures.

Technical Parameters:

Applications:

Customization:

The tray can be tailored to specific production needs or part geometries with the following options:

Custom Pocket Layouts – Adjust pocket profiles, spacing, and retention features for non-standard or fragile components.

Color Variations – ESD-safe materials can be produced in different colors to aid in production line identification or inventory management.

Embedded Molded Identifiers – Integrate permanent codes, logos, or batch numbers for traceability and quality control.

Automation-Specific Features – Modify edges, tabs, or indexing slots to enhance compatibility with proprietary robotic systems or custom conveyors.
